CFD4A897R36SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
897.5 |
MHz |
|
Bandwidth [BW] |
fo ±18 [879.5~915.5] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation £ Absolute Value R Relative Value |
43.0 dBc min. @ fo ± [ 300.0 ~ 824.0 ] |
MHz |
|
34.0 dBc min. @ fo ± [840.0 & ] |
MHz |
|
|
2.0 dBc min. @ fo ± [ 920 & ] |
MHz |
|
|
6.0 dBc min. @ fo ± [ 925 & ] |
MHz |
|
|
30.0 dBc min. @ fo ± [ 1000 ~ 2000 ] |
MHz |
|
|
dBc min. @ fo ± [ & 3000.0 ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

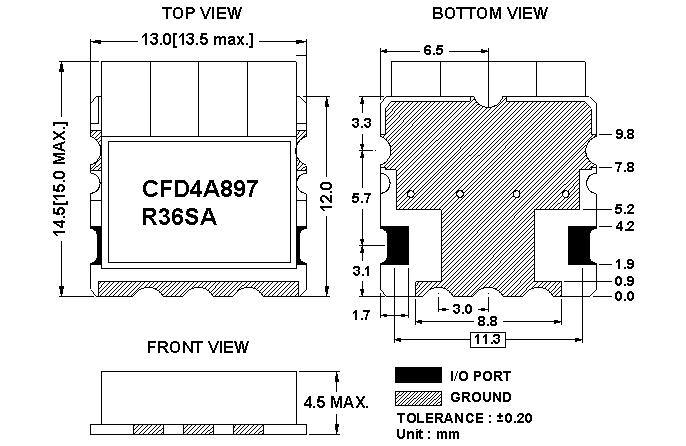

机械规格图

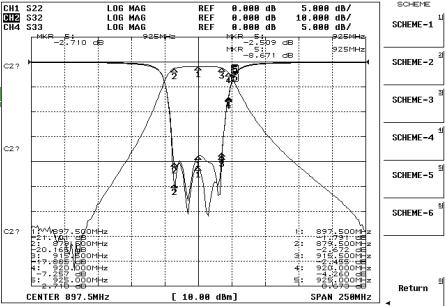

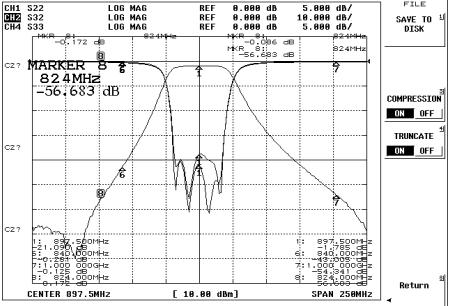

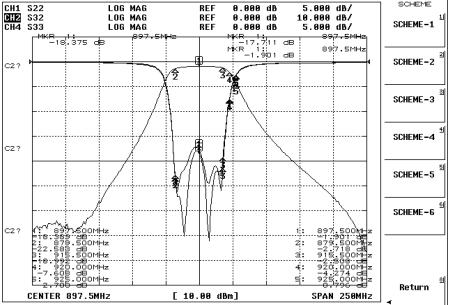

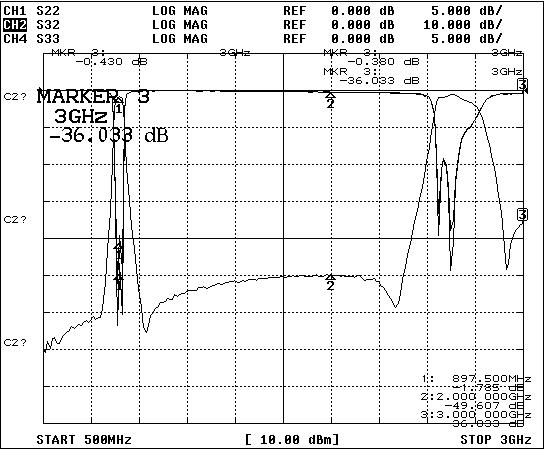

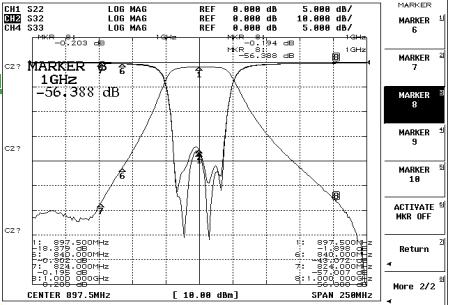

绘图数据
推荐的PC板模式

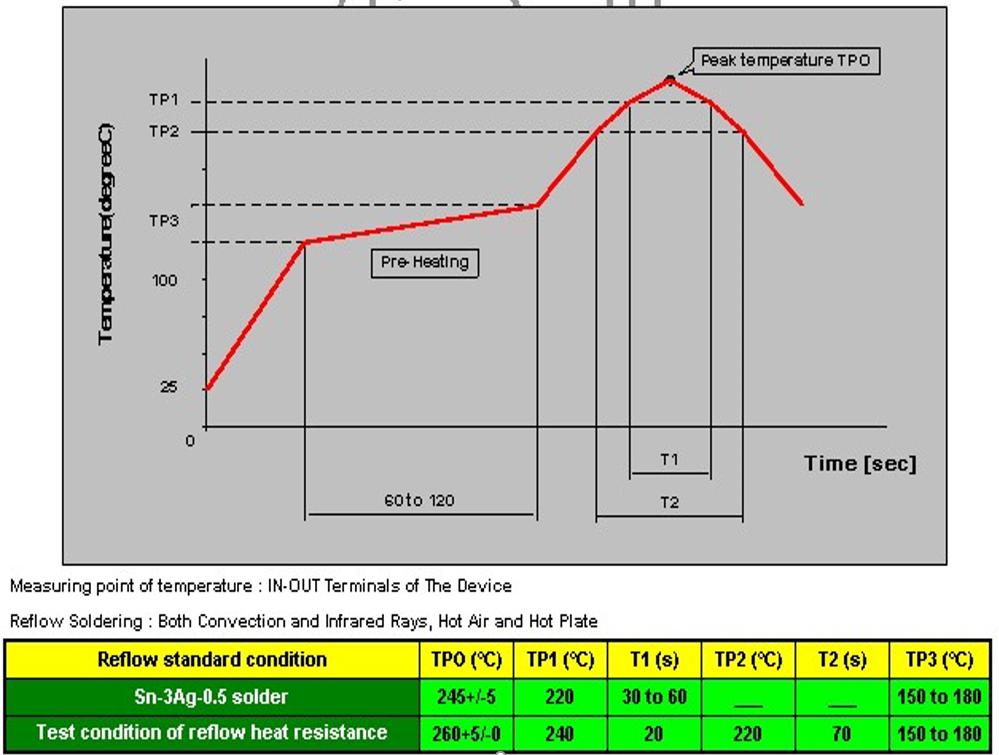

焊接条件
