CFF4P2350R100SC
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
2350.0 |
MHz |
|
Bandwidth [BW] |
fo ±50.0 [2300.0~2400.0] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation £ Absolute Value R Relative Value |
30dBc min. @ fo ± [ 1.0 ~ 2176.0 ] |
MHz |
|
15dBc min. @ fo ± [ 2176.0 ~ 2263.0 ] |
MHz |
|
|
2.0 dBc min. @ fo ± [2263.0 ~ 2280.0 ] |
MHz |
|
|
2 dBc min. @ fo ± [ 2420 ~ ] |
MHz |
|
|
20.0 dBc min. @ fo ± [ 4200. 0~ 4720.0 ] |
MHz |
|
|
TBD dBc min. @ fo ± [ 4720.0 ~ 6000.0 ] |
MHz |
|
|
|
|
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
1.0 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

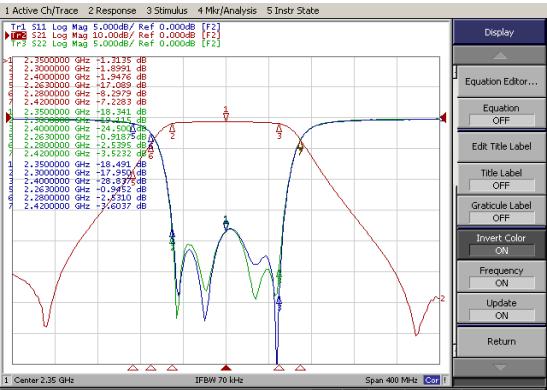

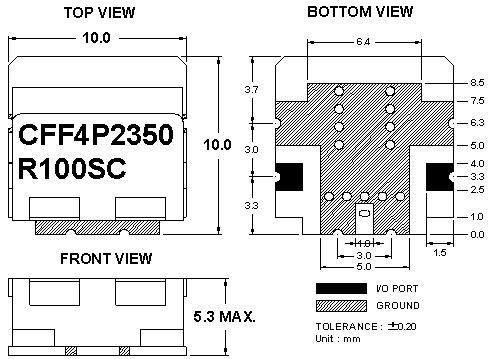

机械规格图
绘图数据
推荐的PC板模式

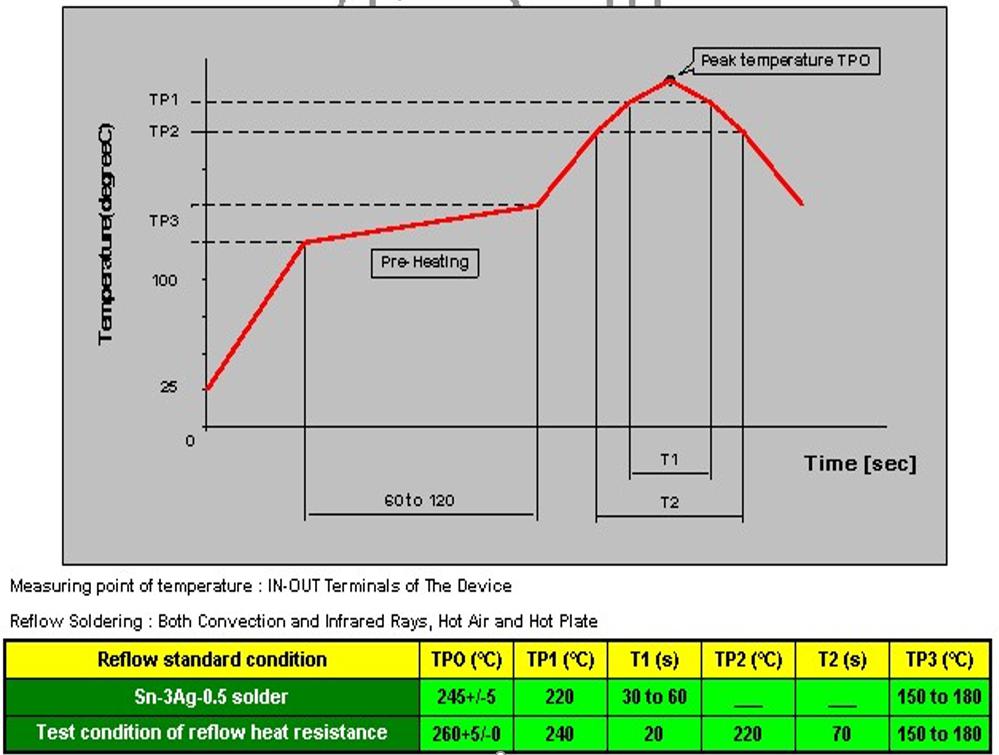

焊接条件
